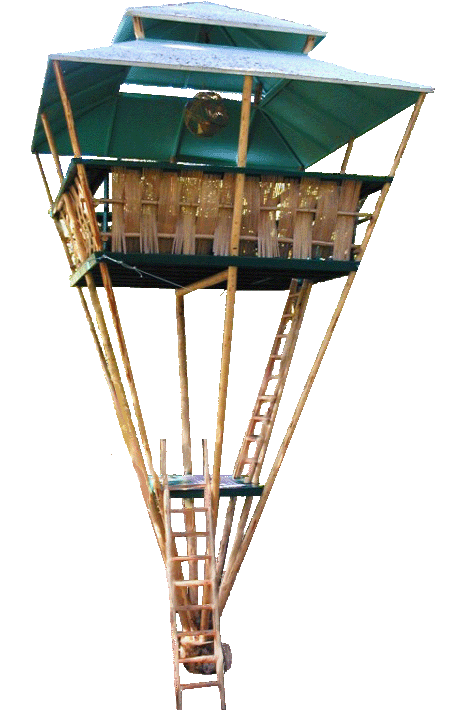

hooch model
Hooch Specs




Floor Area
Height(overall )
(approx.)
Landing Size
Soffit Height
   (approx.)
Floor Height
   (approx.)
6' by 6'
   19'
  2' by2'
   17'
   12'
8' by 8'
   25'
  4' by 4'
   21'
   15'
10' by 10'
   29'
  4' by 4'
   25'
   19'
12' by 12'
   33'
  6' by 6'
   28'
   22'


All hooch kits include:

-wrap around living area counter @36" height & 16" width
-plywood roof
-250' of 1/4" galvanized wire
-all hardware and fasteners
-Ladder components(to landing and main floor)
-horizontal half wall components for bamboo weaving (optional)

Bamboo/Douglas fir Design:

-poles extend from base to roof soffit
-special bamboo joinery is employed for bamboo components
-poles through bolted for strength and easy dis-mantling
-poles are purchased locally and not included in kit (I can accommodate pole delivery)
- generally open design, though weather tight enclosure is possible
-total components: 120 structural, 32 plywood (plus poles-10 )

Timber Frame Design:
-All components are dimensional lumber
-additional trusses added at every level (platform framed)
-all joinery fastened with 1" by 4" gussets. Complete shell is cladded with 1" by 4".
-framing allows for easy additional shell options-plywood, windows, screening, and insulation
- component fastening with wood screws throughout
- plywood shell option allows structural rigidity without trusses
-total components: 216 structural, 32 plywood

Questions? e-mail me at: bamboo@tropical-treehouse.com
